Upon request
Код: 40040-00053
DTV100 1-30 OIL
Characteristics:
- 1 single stage side channel blower with three-phase induction motor
- Power coated steel structure and containers.
- Stainless steel AISI 304 submersible electric pump (S1) for liquid (and up to 20mm size mixed waste) automatic discharge.
- Washable nylon filter
- Metal central inlet channel with deflector

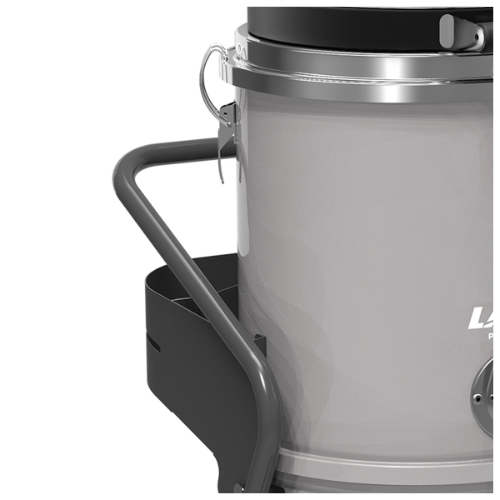

- Wheeled container with inbuilt quick release handle, drain plug and full load level

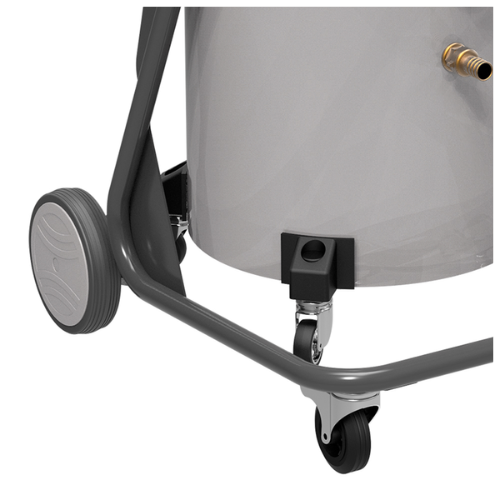

- Trolley with front pivoting non-marking wheels (with breake) & large inbuilt accessories basket

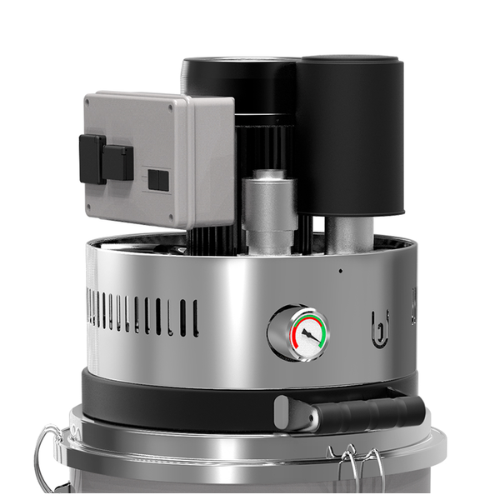

- Removable motor unit header through metal hooks
Description
Технически данни
Код на продукта
40040-00053
Abs. Power (W)
3000
N°/Motor Type
1/индукционен
Max. Suction
32 kPa (26 kPa)
Air Flow
320 m³/h - 89 l/s
Tank (l)
100 l
Noise level
78 dB(A)
Voltage
400V~50Hz (3Ph)
In Ø - Type (s=straight;t-tangential)
70 mm - s
Filter Capacity/Surface
3,2 μm/7000 cm²
Cable length
10 m
Weight (kg)
110
Dimension (cm)
80x60x171
